Introduction
This is basic instructions for handmade 4965 MHz 13-14dBi Double BiQuad external antenna.
I used computer software
4nec2 (antenna modeler and optimizer) version 5.8.11 to model theoretically the perfect antenna.
All measurements based on very careful analysis with computer software which results many times has been proven to be quite accurate and reliable in physical world.
Description
The WLAN 4.9 GHz uses microwave frequencies from 4940 to 4990 MHz (WLAN channels 20-26). So the target is about in the middle - 4965 MHz.
Target frequency - 4965 MHz (for WLAN)
Simulation NEC Input files:
Configuration symbols in NEC Input files:
- ED - Element square diagonal length / 2
- WR - Wire radius
- S - Spacing between element and reflector
- RH - Reflector height / 2
- RL - Reflector length / 2
- LH - Height of reflector "lips"
All dimensions in .NEC data files and graphs are in wave-length ratio.
Main 4nec2 windows with parameters (antenna with lips on the left, without on the right)
Gain (antenna with lips on the left, without on the right)
Note: The dBi scale is logarithmic in base 10, where +3 dBi is a doubling in gain! An increase in gain of +1 dBi is equivalent to an increase of 26% and +2 dBi is equivalent to an increase of 60%. This means that the increase in +1dBi is big deal.

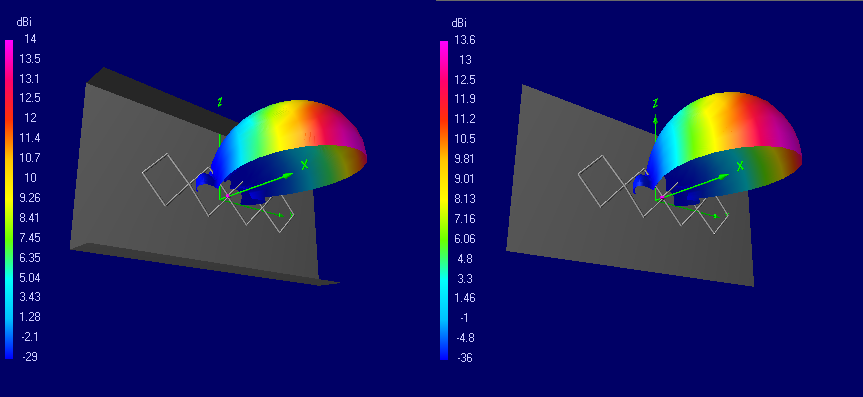

3D Radiation pattern
Overview
|
|
Scheme for double biquad without "lips" |
|
Wave length (lambda)
=
Calculated measurements for antenna with "lips"
|
Calculated measurements for antenna without "lips"
|
Section length - 2/√2×ratio×lamba ≈ 1.5 cm
Wire diamter - wire.radius.ratio×lambda×2 = 1 mm (Wire area A = πd2/4 ≈ 0.79 mm2)
Element spacing - element.spacing.ratio×lambda ≈ 0.5 cm
Reflector height - ver.length.ratio×lambda×2 ≈ 6.3 cm
Reflector length - hor.length.ratio×lambda×2 ≈ 12.8 cm
Height of reflector "lips" - lips.length.ratio×lambda ≈ 2.1 cm
|
Section length - 2/√2×ratio×lamba ≈ 1.5 cm
Wire diamter - wire.radius.ratio×lambda×2 = 1 mm (Wire area A = πd2/4 ≈ 0.79 mm2)
Element spacing - element.spacing.ratio×lambda ≈ 0.5 cm
Reflector height - ver.length.ratio×lambda×2 ≈ 6 cm
Reflector length - hor.length.ratio×lambda×2 ≈ 12.5 cm
|
Parts Required
|
|
N-Type (female) connector |
|
Single Sided Copper Clad Board |
|
Building the antenna
I will not show you picture after the picture how to drill the hole in center of reflector. How to use ruler. How to do proper soldering. What kits to use and etc. There are plenty of tutorials for these steps:
http://www.ziva-vatra.com/index.php?aid=16&id=SGFyZHdhcmU=,
http://martybugs.net/wireless/biquad/ or
http://martybugs.net/wireless/biquad/double.cgi
(Note: all calculations in links are for 2.4 GH
z WiFi antenna. Use mine calculated data and measurements for 4.9 GHz antenna.)
(Note: Pictures below not to scale)
Element bending
Before you start to bend the wire, make it straight as you can.
|
Ensure each side of the element is as straight and symmetrical as
possible.
The element sides are rectangular and widths are 1.5 cm, measured from
wire center to wire center.
The more accurate you do the better as the analysis shows a huge impact in element dimensions.
|
|
Mine wire bending technique in the crossing sections.
Note: You must leave a ~1.5 mm gap between the element wires cross overs and solders.
|
Guidance and recommendations
|
N-connector in the center of reflector. Maintain correct reflector’s dimensions. |
|
Maintain correct spacing between the element and the reflector! 0.5 cm |
|
You must leave approx. 1.5 mm gap between the element wires cross overs and soldered contacts.
Use
spacers in each end of the element to strengthen its position and
spacing proper height between the radiator and the reflector.
Spacers
must be from any non-metallic material. |
|
Finished. Lying on the belly. |
Usage
|
This antenna should get the best performance at horizontal polarization.
Note: The antenna is horizontally polarized then reflector is held vertically. |
Outdoor usage
If you intend to use this antenna outdoor, you will need to make it weather-proof to prevent corrosion.
Some people have used small tupperware containers, but it looks ugly at the top of the roof. I rather choose the corrosion… Or the good painting with some silicone on soldered contacts.
After you build your own antenna, you need proper cable with connectors to connect antenna with your modem.
Click here: Guide to Antenna Cables & Connectors
References
3.5 GHz antenna 4nec2 analysis and testing:
http://wimaxvedlys.blogspot.com/2013/02/double-biquad-35-ghz-wimax-antenna.html
MIMO technology tests, two antennas gives better performance (Use two only if you have weak signal with one):
http://www.danlampie.com/?p=708
How-To: Build a WiFi biquad dish antenna:
http://www.engadget.com/2005/11/15/how-to-build-a-wifi-biquad-dish-antenna
Last updated on 14 Jul 2014
